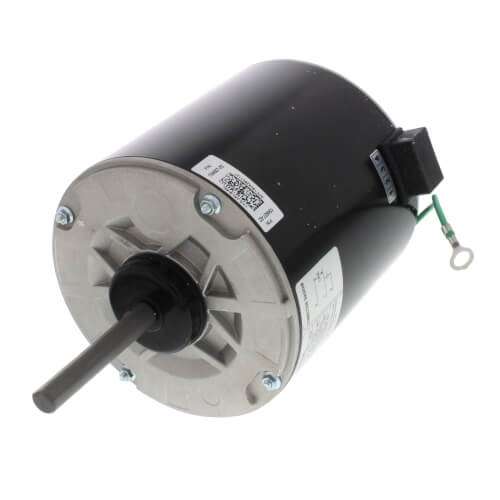

A/C Condenser Fan Motor For Lennox Part # 14Y70
Cancer and Reproductive Harm -
Prop 65 WARNING(S)
Mfg Part No.:
14Y70
- Horsepower: 1/3
- Voltage: 380/460
- Hertz: 50/60
- Full Load Amperage: 1.1/0.8
- Phase: Single
- RPM: 1075
- Frame: 48Y
- Thermally Protected
- Motor Cooling: Air Over Continuous
- Insulation Class: B
- Capacitor Needed: 10 MFD @ 370 VAC
- Rotation: Counterclockwise Lead End
- Shaft Type: Single Side Flat Shaft
- Shaft Diameter: 1/2"
- Shaft Length: 3 1/2"
- Shaft Length From Rain Protector: 2 7/8"
Replaces: 79J8201, 104607-02
To prevent premature motor failure, it is highly recommended you change your capacitor along with your motor. Capacitors out of tolerance can cause motors to overheat and prematurely fail.
